89100 Cylindrical Roller Thrust Bearings

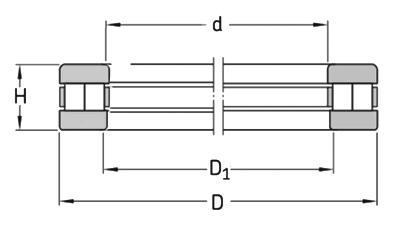

Drawing
Datasheet
Datasheet
| Bearing No. | Dimensions | Mass | ||
| d | D | H | ||
| – | mm | mm | mm | kg |
| 89172 | 360 | 440 | 48 | 15.5 |
| 89176 | 380 | 460 | 48 | 16.5 |
| 89180 | 400 | 480 | 48 | 17.5 |
| 89184 | 420 | 500 | 48 | 18 |
| 89188 | 440 | 540 | 60 | 30 |
| 89192 | 460 | 560 | 60 | 31.5 |
| 89196 | 480 | 580 | 60 | 32.5 |
| 891/500 | 500 | 600 | 60 | 34 |
| 891/530 | 530 | 640 | 67 | 44 |
| 891/560 | 560 | 670 | 67 | 46.5 |
| 891/600 | 600 | 710 | 67 | 49.5 |
| 891/630 | 630 | 750 | 73 | 62 |
| 891/670 | 670 | 800 | 78 | 75.5 |
| 891/710 | 710 | 850 | 85 | 95 |
| 891/750 | 750 | 900 | 90 | 115 |
| 891/800 | 800 | 950 | 90 | 120 |
| 891/850 | 850 | 1000 | 90 | 130 |
| 891/900 | 900 | 1060 | 95 | 150 |
| 891/950 | 950 | 1120 | 103 | 185 |
| 891/1000 | 1000 | 1180 | 109 | 220 |
| 891/1060 | 1060 | 1250 | 115 | 260 |
| 891/1120 | 1120 | 1320 | 122 | 305 |
